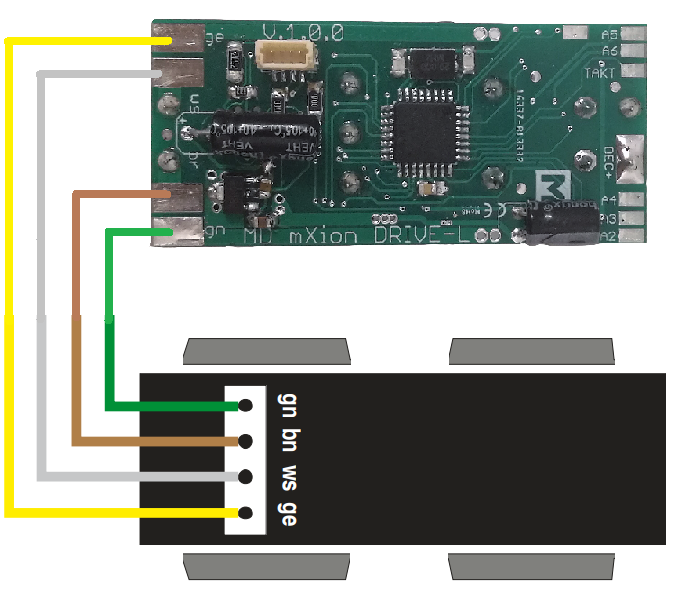

mXion Drive-L Locomotive Decoder

mXion Drive-L Locomotive Decoder

£58.00Price

The mXion DRIVE-L is a powerful 3.5A (4A peak) locomotive decoder with sensitive control. The DRIVE-L has 6 function outputs and 2 contact inputs. The DRIVE-L can run a wide range of special and imitation simulations on all function outputs (e.g. TV, delayed on or off, neon, gas lamps, fire, dimming, etc...). Servo functionality is also implemented. A "Swiss mapping" is also available. In addition to the "Swiss mapping" and the American special functions, the DRIVE-L has a total of over 19 special functions and special light functions. Digital and analog load control is also implemented. The wide mapping up to F28 enables many functions. The innovative random generator allows various simulations (e.g. boiler fire) to be triggered randomly. In addition, no additional boiler fire module is required. Of course, the DRIVE-L has a SUSI interface and labeled terminals, so that simple installation and retrofitting of sound modules is no problem. Switchable delay times, high beam function, Swiss mapping as well as a shunting gear and the "double-A shunting light" are included.





Functions at a glance:

• 14, 28 and 128 speed steps
• 256 internal speed steps
• 10239 locomotive addresses

• F0 - F68 switchable for decoder & SUSI

• SUSI bus connection

• Serial pulse chain on A1 with parallel data transmission for old MZS sound modules or panto board/light organ of the LGB Ge 4/4 II and Ge 4/4 III

• Servo with end position, speed controller or swing (for bells)
• ext. Clock for SUSI modules and pulsed vaporizers
• analogue-capable SUSI
• programmable driving curve
• clock simulation
• clutch waltz (with free function mapping)
• handbrake function (with free function mapping)
• Swiss mapping (with free function mapping)
• US mapping (with free function mapping)
• pulsed vaporizer control diesel and steam (internal or external clock) (with free function mapping)
• double-A shunting light function (with free function mapping)
• high beam function (with free function mapping)
• one-sided light suppression (with free function mapping)
• oscillation function over time or contacts (with free function mapping)
• shunting gear (with free function mapping)
• starting, medium and maximum speed (as well as deceleration times)
• parallel control for all light and function outputs
• digital and analogue operation with automatic detection
• compatible with NMRA DCC and LGB® MZS (all generations)
• latest generation load control (for digital and analogue operation)
• adjustable motor frequency (70Hz – 100 kHz)
• 2 light connections (front, rear) max. 0.5A each
• 6 function outputs (all with configurable special functions) max. 1A each
• light and function outputs dimmable and can be activated analogue + effects
• servo function on 6 outputs, 5V controller not integrated
• programmable flashing light, short-term and clock function (gear or simulation) as well as over 20 light effects per output
• 20 light patterns selectable per output (various. flashing, petroleum, sodium, neon, neon defective, US lights, and much more)
• 8 conditions can be selected per output (permanent, only when driving, only forward, etc.…)
• 2 additional contact inputs for reed triggering, drive stop, PZB
• simple function mapping for all function outputs
• all function outputs can be freely addressed (F1 to F28)
• total load capacity of 5 amps (motor output stage and function outputs)
• motor output stage can be loaded with 3.5 amps (4A peak) (also suitable for several motors)
• voltage buffer connection can be configured for smooth operation (BC)
• overload and temperature protection for motor and function outputs
• reset functions for all CV values
​​• software can be updated
• CV reading
• CV writing • CV
writing bit by bit
• CV indirect (using register programming for older digital systems)
• direct register programming (CV 1 – CV4)
• POM – Program on Main (programming on the track)
• 55x25mm in size
